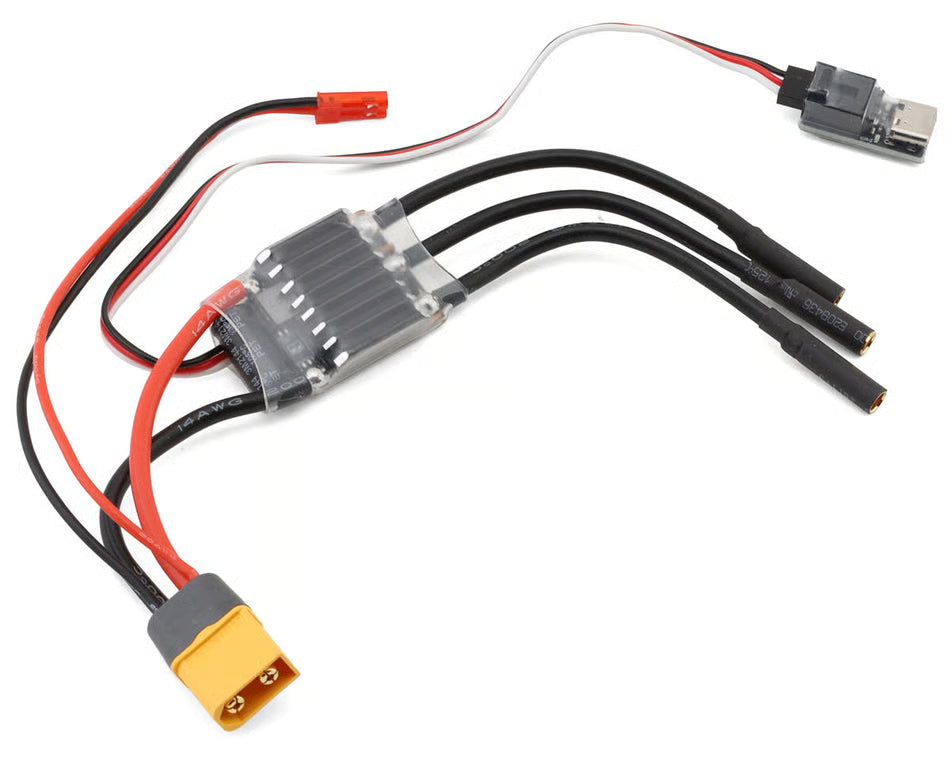

OCDRC - Ghost Silent Mini Brushless Crawler ESC

OCDRC Ghost Silent Mini Brushless Crawler ESC

The OCDRC Ghost is a compact, silent brushless ESC designed specifically for rock crawlers. It uses the same ESC board and specifications as the Holmes Hobbies CrawlMaster Mini V3, with a custom OCDRC factory tune.

The Ghost comes pre-programmed with a solid baseline setup, but crawler performance can vary significantly depending on vehicle weight, gearing, motor, tire size, and driving style. For best performance, individual settings should be adjusted to match your specific rig.

Programming & Setup

Because the Ghost uses the same board and programming system as the CrawlMaster Mini V3, installation and programming procedures for the Holmes Hobbies CrawlMaster Mini V3 also apply to the OCDRC Ghost.

For detailed setup and programming instructions, search YouTube for “Holmes Hobbies CrawlMaster Mini V3 programming”. Those tutorials can be used to walk through the available settings and programming procedure.

Important: The OCDRC Ghost has its own custom factory tune, so the default settings may differ from a standard CrawlMaster Mini V3. Adjust settings as needed for your vehicle rather than assuming another rig's settings will be ideal for yours.

Specifications:

• Input Voltage: 2-4S lipo (20V max)
• Internal BEC: 3A - 7.4V
• Length: 39mm
• Width: 26mm
• Height: 11mm
• Weight: 39g
• Battery Connector: XT60
